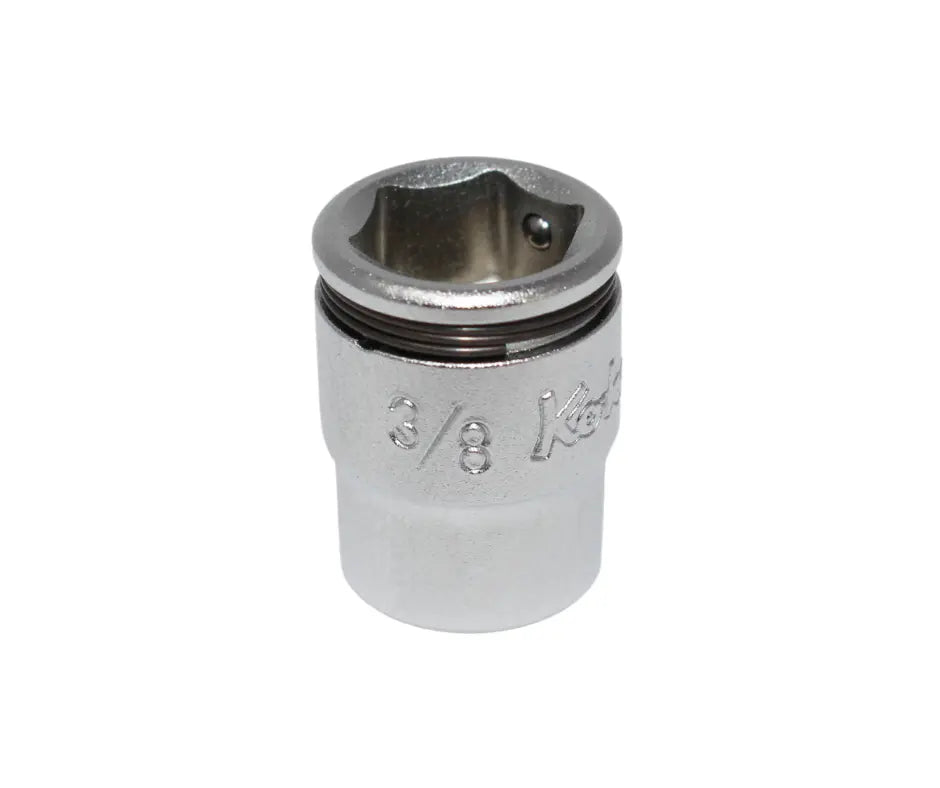

• Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP Socket - 3/8 Front View
  • Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP Socket - 3/8 mechanical drawing
1 2

Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP Socket - 3/8

$16
Sale Sold out

SKU: 2450AS-3/8

Shipping calculated at checkout.

Status : In Stock
Save

    Guaranteed Secure Checkout

    Easy Online Returns

    Return this item within 90 days of purchase. Read Return Policy

    View full details
    Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP Socket - 3/8 Front View

    Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP Socket - 3/8
    Nut Grip Holding Power in a Compact 3/8

    Nut Grip Holding Power in a Compact 3/8" Socket

    NUT GRIP is Ko-ken’s non-magnetic way to hold nuts and bolts firmly inside a 6-point socket, using two balls retained by a spring steel ring. Built as a short, compact socket for tight-access fasteners and controlled hand-tool work.

    Specs

    Spec

    Detail

    Brand

    Ko-ken

    Drive Size (Input)

    1/4" square drive

    Socket Size (Output)

    3/8"

    Point Style

    6-point (NUT GRIP holding design)

    Finish / Tool Type

    Chrome, hand-socket (non-impact)

    Holding Mechanism

    Two balls + spring steel ring (non-magnetic retention)

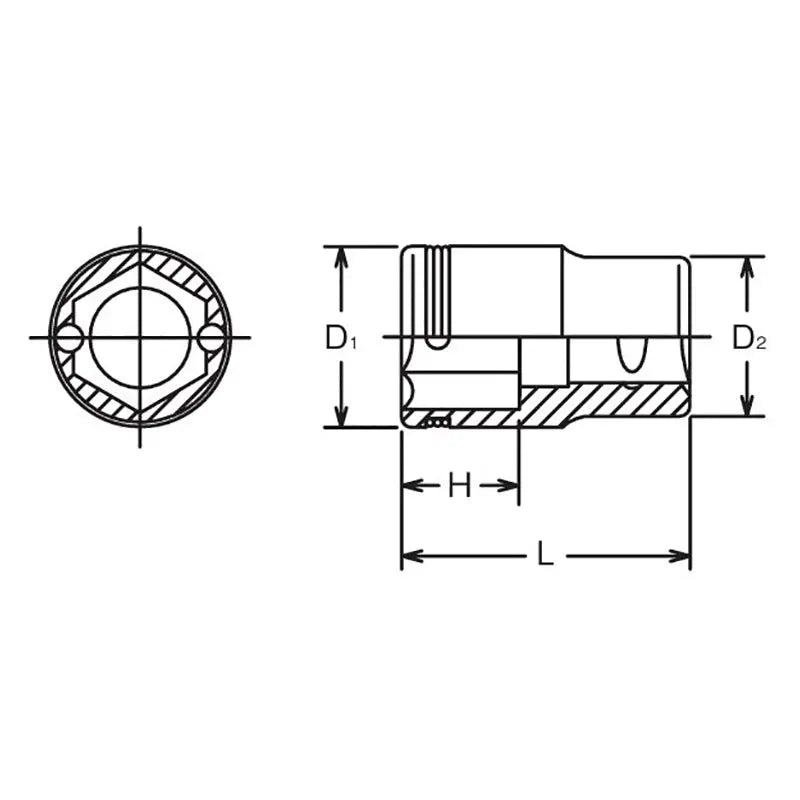

    Product Dimensions (Refer line drawing)

    D1 Size: 14.3mm,
D2 Size: 11.9mm,
H Size: 6mm,
L Size: 19mm

    Why You’d Use This (Real Shop Reasons)

    • Start nuts/bolts one-handed in tight spots (keeps the fastener from dropping out of the socket).
    • Overhead or vertical fasteners where gravity works against you.
    • Tight-access areas where a shorter socket helps clearance (compact 19mm length).

    How NUT GRIP Works

    NUT GRIP holds non-magnetic fasteners in a 6-point socket using two balls captured by a spring steel ring. This gives a secure “held-in-socket” feel without relying on magnets.

    Best Practices / Notes

    • Hand-tool use (chrome hand socket). Avoid using as an impact socket.
    • Seat the socket fully on the fastener before applying torque for best grip and fastener protection.

    In the Box

    • 1x Special 1/4 Sq. Dr. Short NUT GRIP Socket - 3/8 (2450AS-3/8)
